The current sinking capacity of pin 8 is

around 130mA so the combined current re-

quired to switch any external devices, should

not exceed this. This can be increased using

transistor switching if necessary.

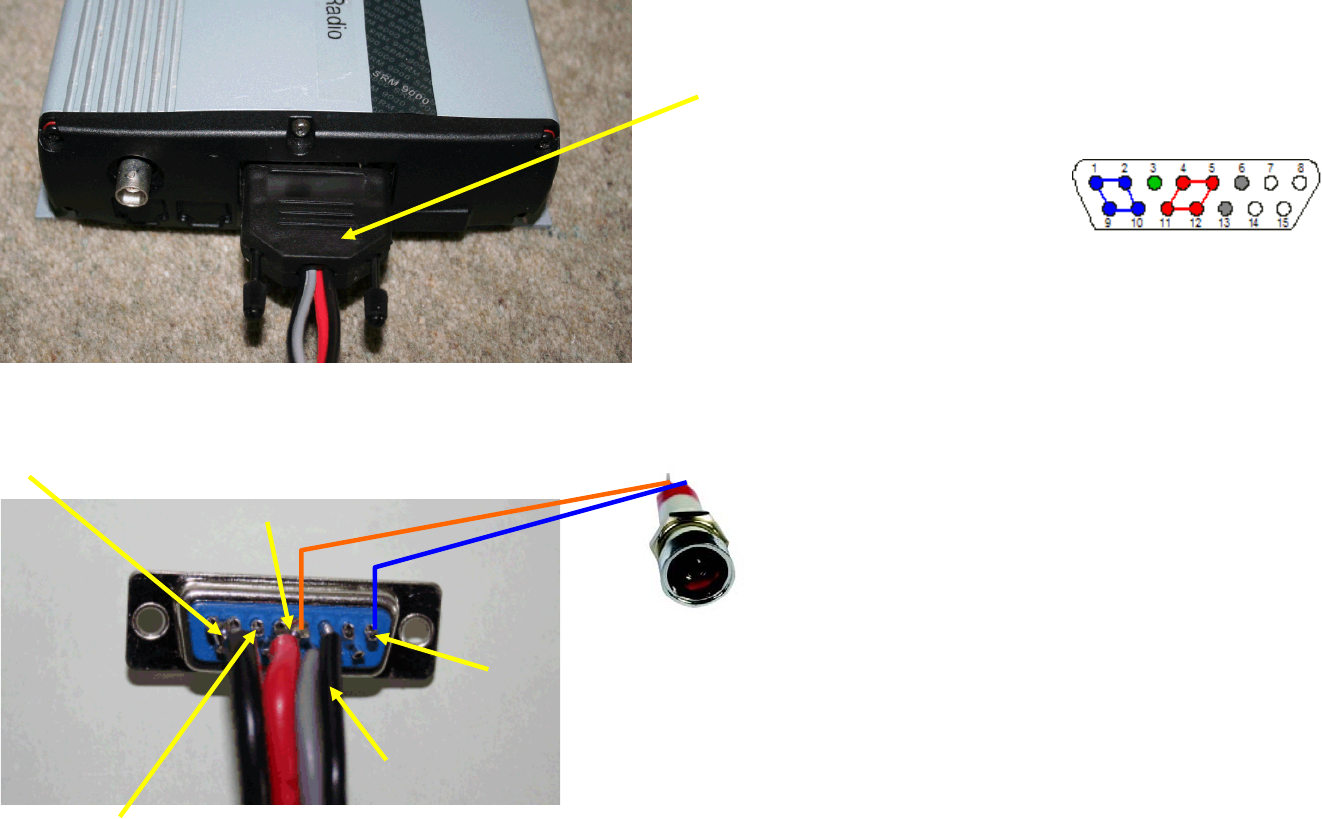

Back of the power plug

The Standard Power and

Speaker Connector (Facility con-

nector)

Four pins linked for negative supply lines

Four pins linked for the positive supply

Pin 3 - the Ignition sense connection. Pin 3 should be linked

to the adjacent positive supply pins to ensure switch-on.

Pin 8 - the programmable output

connection. (Programmed to be

Low on Tx)

The SRM9000 power and facility connector.

Speaker connections - pins 6 and 13

NO7BB 12 volt LED Green

NO5BB 12 volt LED Red

Maplin Electronics

Simple System

On/Off Indication

Where no control head is used, as in the ‘Simple’ repeater…….
